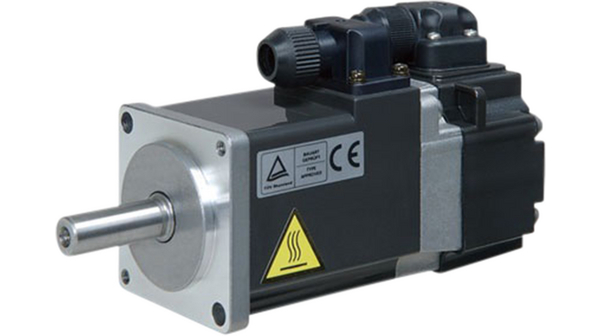

Servomotor HG-KN, 400W; Torque 1.3 Nm, max. torque 3.8 Nm, brake, Key-way
| Series | MELSERVO-JE |
|---|---|
| Type | HG-KN |
| Rated Capacity (kW) | 0,4 |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 3,8 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 5000 |
| Inertia (kg*cm2) | 0,397 |
| Brake | YES |
| Shaft Type | KEYWAY |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | INCREMENTAL |
| Encoder Resolution (p/rev) | 131072 |
| Width (mm) | 60 |
|---|---|
| Height (mm) | 60 |
| Depth (mm) | 176,5 |
| Weight (kg) | 1,9 |
