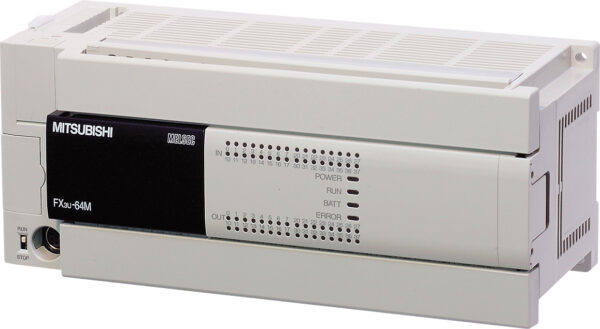

PLC, FX3U Base Unit AC 100-240 V; 32 inputs DC 24V; 32 triac outputs
SERIES MELSEC-F SERIES
TYPE FX3U
POWER SUPPLY (V) 100-240
CURRENT TYPE AC
PROGRAM MEMORY 64K STEPS
PROGRAM MEMORY UNIT RAM
INTEGRATED DIGITAL INPUTS 32
INTEGRATED DIGITAL OUTPUTS 32
OUTPUT TYPE TRIAC
LOCAL I/O POINTS 256
LOCAL + REMOTE I/O POINTS 384
EXPANDABLE YES
CYCLE TIME LD (NS) 65
CYCLE TIME MOV (NS) 642
RS-422 1
POWER CONSUMPTION (W) 40
BUFFER BATTERY YES
PROTECTION CLASS IP10
MIN. AMBIENT TEMPERATURE (°C) 0
MAX. AMBIENT TEMPERATURE (°C) 55
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 220
HEIGHT (MM) 90
DEPTH (MM) 86
WEIGHT (KG) 1
