compact plc

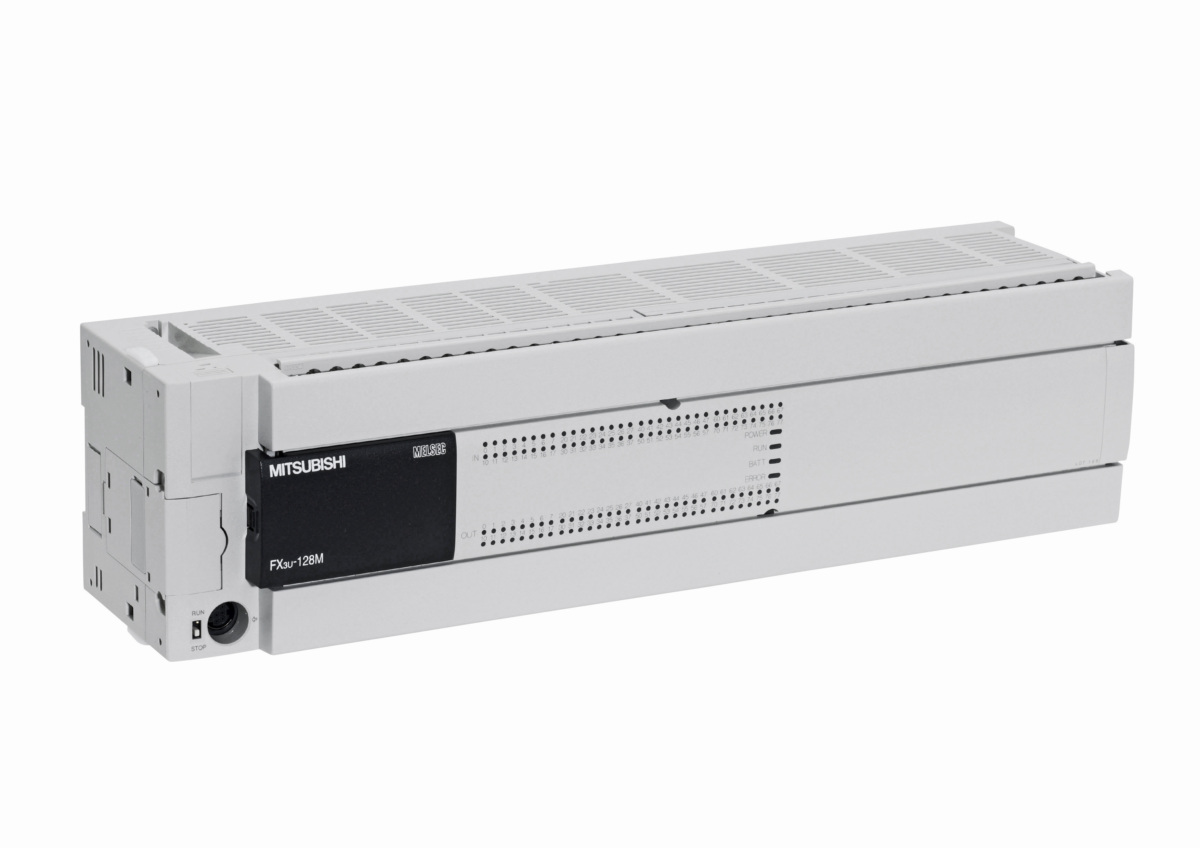

FX3U-128MR/ES
PLC, FX3U Base Unit AC 100-240 V: 64 inputs DC 24 V; 64 relay outputs
Compare
| SERIES | MELSEC-F SERIES |
|---|---|
| TYPE | FX3U |
| POWER SUPPLY (V) | 100-240 |
| CURRENT TYPE | AC |
| PROGRAM MEMORY | 64K STEPS |
| PROGRAM MEMORY UNIT | RAM |
| INTEGRATED DIGITAL INPUTS | 64 |
| INTEGRATED DIGITAL OUTPUTS | 64 |
| OUTPUT TYPE | RELAY |
| LOCAL I/O POINTS | 256 |
| LOCAL + REMOTE I/O POINTS | 384 |
| EXPANDABLE | YES |
| CYCLE TIME LD (NS) | 65 |
| CYCLE TIME MOV (NS) | 642 |
| USB | OPTION |
| RS-422 | 1 |
| POWER CONSUMPTION (W) | 65 |
| BUFFER BATTERY | YES |
| PROTECTION CLASS | IP10 |
| MIN. AMBIENT TEMPERATURE (°C) | 0 |
| MAX. AMBIENT TEMPERATURE (°C) | 55 |
| WIDTH (MM) | 350 |
|---|---|
| HEIGHT (MM) | 90 |
| DEPTH (MM) | 86 |
| WEIGHT (KG) | 1,8 |
