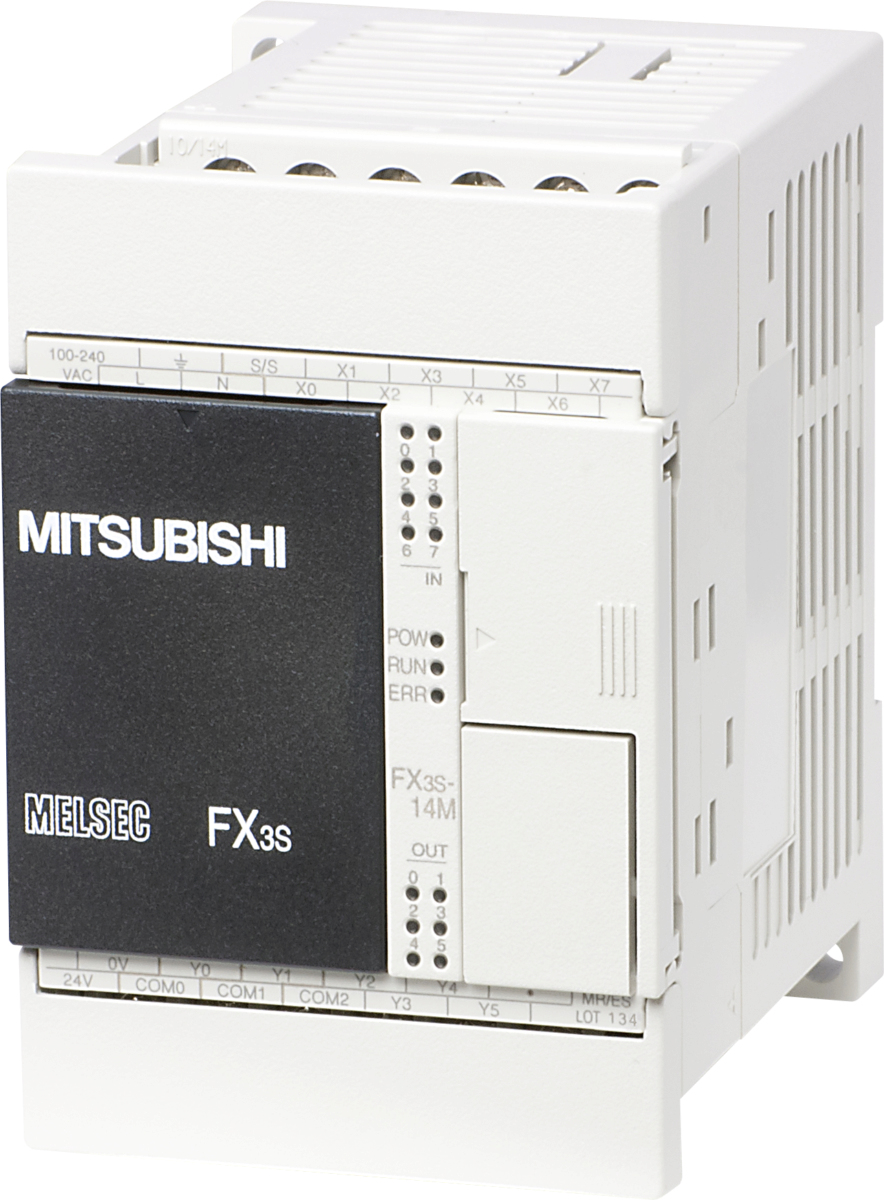

| SERIES | MELSEC-F SERIES |
|---|---|
| TYPE | FX3S |
| POWER SUPPLY (V) | 100-240 |
| CURRENT TYPE | AC |
| PROGRAM MEMORY | 16K STEPS |
| PROGRAM MEMORY UNIT | EEPROM |
| INTEGRATED DIGITAL INPUTS | 8 |
| INTEGRATED DIGITAL OUTPUTS | 6 |
| OUTPUT TYPE | RELAY |
| LOCAL I/O POINTS | 30 |
| LOCAL + REMOTE I/O POINTS | 30 |
| EXPANDABLE | NO |
| CYCLE TIME LD (NS) | 210 |
| CYCLE TIME MOV (NS) | 500 |
| USB | 1 |
| RS-422 | 1 |
| POWER CONSUMPTION (W) | 19 |
| BUFFER BATTERY | NO |
| PROTECTION CLASS | IP10 |
| MIN. AMBIENT TEMPERATURE (°C) | 0 |
| MAX. AMBIENT TEMPERATURE (°C) | 55 |
| WIDTH (MM) | 60 |
|---|---|
| HEIGHT (MM) | 90 |
| DEPTH (MM) | 75 |
| WEIGHT (KG) | 0,3 |
