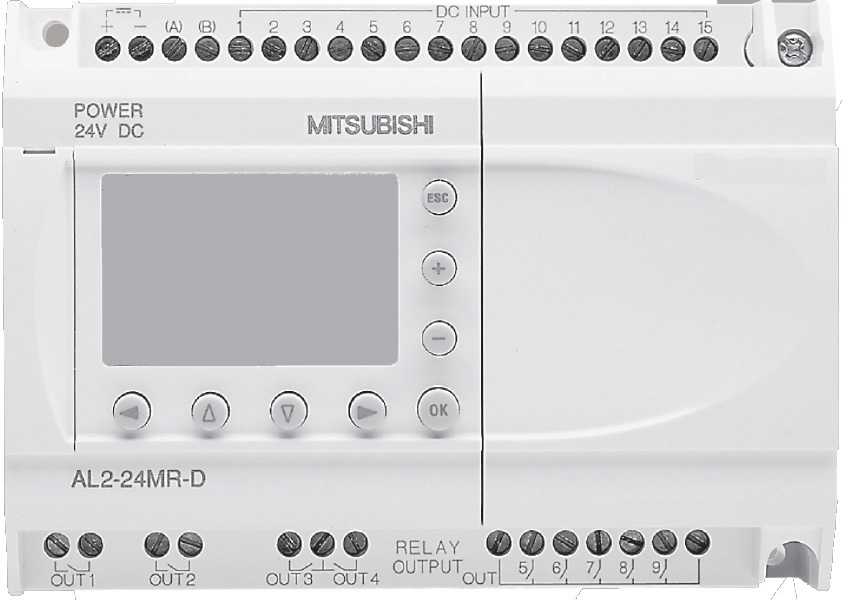

Programmable Logic Controller, ALPHA Base Unit 15 inputs/9 relay outputs, DC
| Series | ALPHA2 SERIES |
|---|---|
| Type | ALPHA MAIN UNIT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 200 BLOCKS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 15 |
| Integrated Digital Outputs | 9 |
| Integrated Analogue Inputs | 8 |
| Output Type | RELAY |
| Local I/O Points | 24 |
| Local + Remote I/O Points | 24 |
| Expandable | YES |
| RS-232 | 1 |
| Power Consumption (W) | 9 |
| Buffer Battery | NO |
| Protection Class | IP20 |
| Min. Ambient Temperature (°C) | -25 |
| Max. Ambient Temperature (°C) | 55 |
| Width (mm) | 124,6 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 52 |
| Weight (kg) | 0,3 |
